“A vacuum is only as strong as its weakest connection.”

Flexible hoses are the unsung heroes of any vacuum cleaner. They bend, stretch, and twist thousands of times while carrying high-speed air and debris. Yet they are almost always the first part to crack, leak, or lose suction. Understanding why this happens requires a look at engineering, material science, and user behavior.

⚙️ 1. How a Vacuum Hose Works

A vacuum hose is not just a plastic tube. It’s a multi-layer system designed to handle pressure differences, bending stress, and friction. Typical construction includes:

• Inner layer: smooth surface for stable airflow.

• Reinforcement coil: usually PVC or metal wire providing structure.

• Outer jacket: flexible, abrasion-resistant skin protecting against impacts.

When air rushes through, the inner surface experiences continuous turbulence. Each bend adds micro-vibration and torsional stress. Over time, the repeated compression and extension cycles fatigue the material—especially near the ends where the hose meets rigid connectors.

💥 2. The Common Failure Points

Field data show that 80 % of hose failures occur at predictable spots.

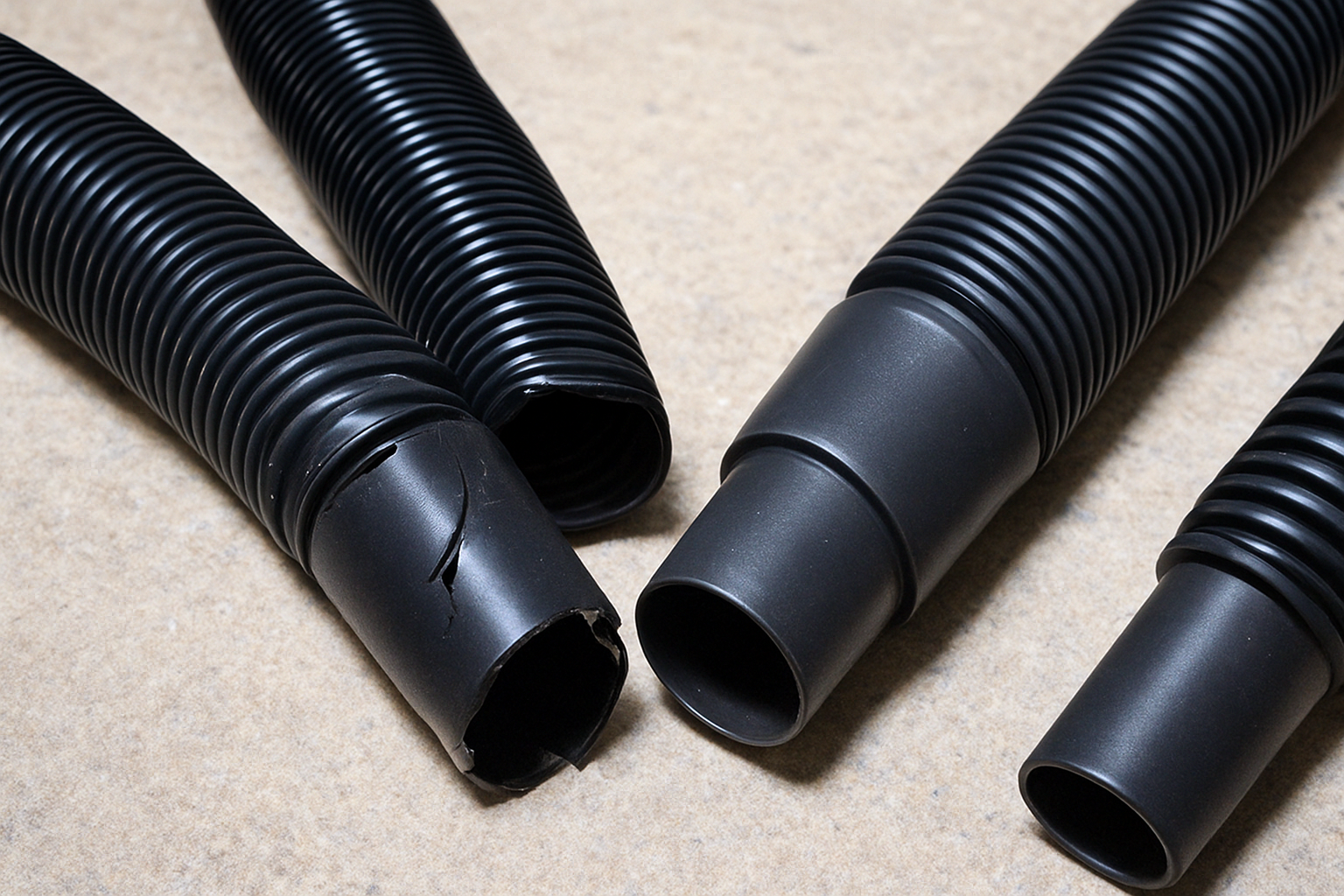

1. Connector joints: The transition between flexible and rigid material forms a stress concentration zone. If the joint lacks strain relief ribs, cracks appear within months.

2. Coil separation: In cheap hoses, the reinforcement wire is glued rather than embedded. Repeated bending loosens it, leading to loss of shape and suction leaks.

3. Surface abrasion: Dragging the hose over rough floors wears away the outer jacket. Once the reinforcement is exposed, the hose quickly collapses.

4. Thermal aging: Hot exhaust air from the motor or sunlight in storage rooms accelerates plastic hardening. A stiff hose becomes brittle and eventually snaps.

🧪 3. Materials: What Really Determines Durability

The choice of polymer dramatically affects lifespan and flexibility.

*Approximate under normal domestic use.

Durable hoses combine EVA or PU layers with a spiral reinforcement that distributes stress evenly. The smoother the internal surface, the less friction and noise. For industrial wet-dry models, engineers often add anti-static additives to prevent electric buildup from dust particles.

🧱 4. Design Factors That Extend Hose Life

Design—not price—decides whether a hose lasts months or years.
Engineers aim to spread mechanical stress and keep airflow stable.

🔩 a. Reinforcement Geometry

A tight coil with consistent pitch distributes bending evenly.
Wide-spaced coils flex unevenly and create pinch points where cracks start.
Some high-end hoses alternate left- and right-hand spirals to neutralize torsion.

🌀 b. Wall Thickness and Rib Profile

Thicker isn’t always better.
Excess material makes a hose heavy and harder to compress, stressing connectors.
The optimum design balances elasticity (for flexibility) and compression resistance (for suction stability).
Rounded ribs glide more smoothly on the floor, reducing abrasion noise.

🔗 c. Connector Relief and Rotation

Adding a strain-relief sleeve where the hose meets the handle allows it to twist without tearing.
A 360-degree swivel joint reduces torsional build-up and kinking.
Procurement teams should check that connectors include flexible boot sections rather than rigid glued joints.

🌡️ d. Temperature and UV Resistance

Color additives and stabilizers matter.
Grey or translucent hoses resist UV better than black, which absorbs heat.
When stored outdoors or in hot warehouses, temperature stability prevents early hardening.

🧠 5. Testing and Quality Control

Laboratory testing exposes weaknesses long before products reach users.

🔧 Bending Fatigue Test

A hose is bent ±180 degrees thousands of times while air flows through it.
Durable materials maintain shape after 50 000 cycles; low-grade PVC fails near 5 000 cycles.

🌊 Pressure and Vacuum Resistance

Engineers simulate suction and back-pressure to ensure the hose neither collapses nor expands excessively.
Reinforced designs should maintain cross-sectional stability within ±5 %.

⚡ Static Charge Evaluation

Airborne dust rubbing against plastic generates static electricity.
Without anti-static compounds, users feel shocks and dust clings to surfaces.
Testing verifies discharge below 10⁶ ohms / sq cm for safety compliance.

🧴 Chemical and Abrasion Tests

Wet-dry models encounter detergents, sand, and oils.
Hoses immersed in chemical baths are checked for swelling or discoloration.
Abrasion rigs rub samples against ceramic plates to measure wear depth after 10 000 cycles.

📈 Quality Tracking

Each batch should carry a lot code and QC record for traceability.
Factories following ISO 9001 standards document test results to guarantee consistency.

🧰 6. Maintenance and User Practices

Even a perfectly designed hose can fail early if mishandled.

• Avoid sharp bends. Coiling the hose tighter than its minimum radius causes internal cracking.

• Keep it clean. Residual grit acts like sandpaper inside the tube. Flush occasionally with water and mild soap, then air-dry completely.

• Store properly. Hang the hose on a wide hook; don’t fold or place under heavy objects.

• Protect from heat. Motor exhaust, radiators, or direct sun accelerate polymer aging.

• Inspect ends. Early whitening or stiffness near connectors indicates fatigue—replace before rupture spreads.

A few minutes of care can double service life.

🌍 7. Environmental and Design Innovation

Sustainability trends push manufacturers to replace virgin PVC with recyclable blends.
Modern hoses use EVA-PU composites that combine flexibility and recyclability.
3-D modelling now allows simulation of bending stress, letting engineers redesign coil geometry before tooling.
Some research groups explore bio-based polyurethanes and graphene micro-fillers to increase strength without extra weight.

These innovations will redefine durability standards for the next generation of wet-dry and cordless vacuums.

✨ 8. Key Takeaways

• Most hose failures start at the connector or coil gap—areas of highest stress.

• Material quality (EVA, PU) and reinforcement geometry determine longevity.

• True durability results from balanced flexibility, temperature stability, and regular maintenance.

• Thorough testing—bending, pressure, static, and abrasion—predicts real-world performance.

• Sustainable materials are improving both lifespan and recyclability.

“A flexible hose is not a disposable part; it’s the engineered artery of the vacuum system.”
