“In product engineering, tiny fractures whisper before they scream.”

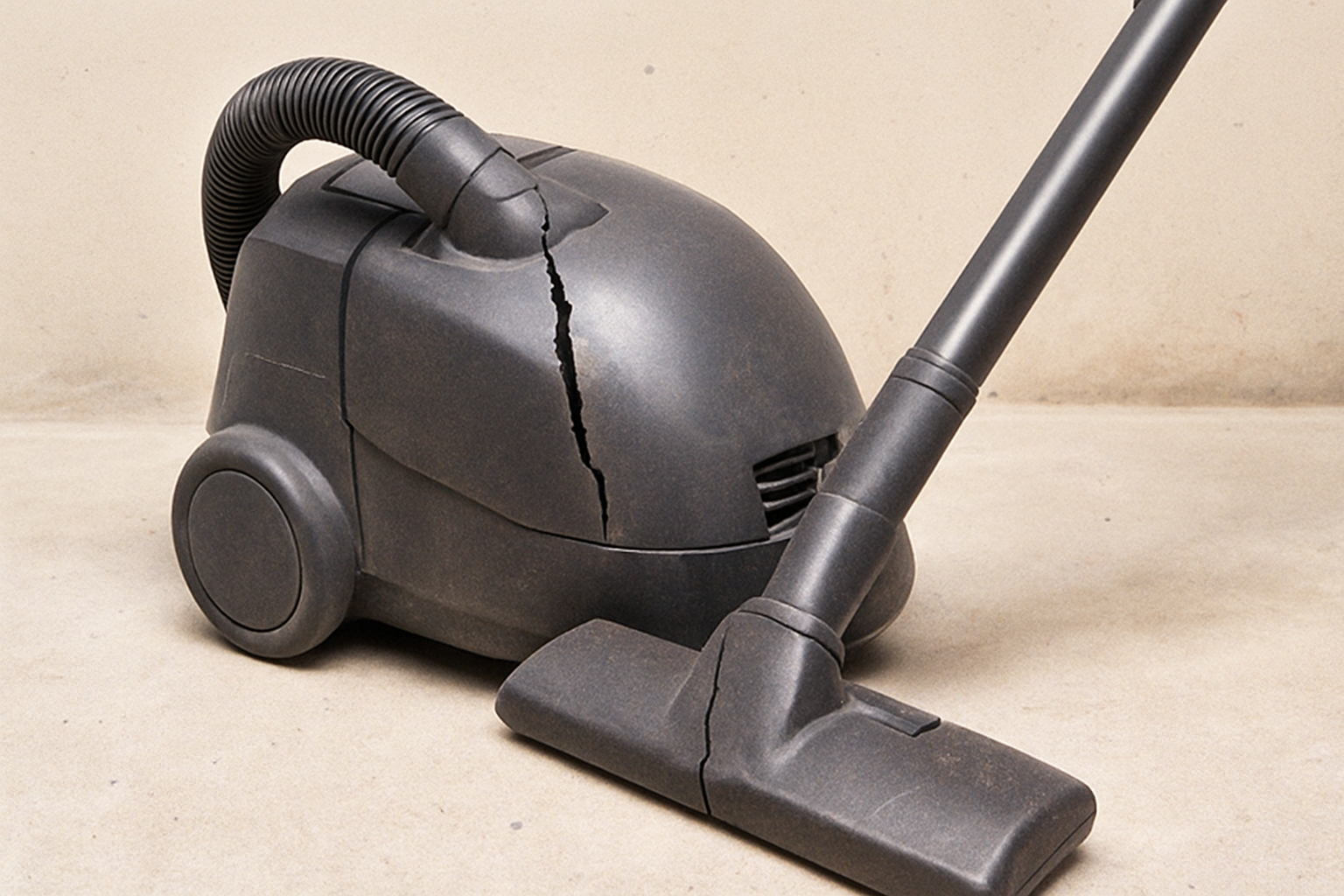

A vacuum cleaner’s outer shell looks solid, but beneath the glossy surface lies one of the most failure-prone structures in the entire machine.
Hairline cracks around screw bosses, hinges, or impact corners can start invisible and end catastrophic—turning a Multi-Functional Durable Vacuum Cleaner into a noisy, leaking, short-lived appliance.

Durability is not only about powerful motors or strong suction.
It depends on how well the housing absorbs stress, heat, and vibration throughout years of use.
Let’s uncover why small cracks appear, how they spread, and what engineers and buyers can demand from modern designs to prevent them.

⚙️ 1. How Stress Builds Up Inside a “Rigid” Shell

Plastic is flexible—but only within limits.
Every vacuum experiences three major stresses during operation:

1. Mechanical impact: bumps against furniture or falls from storage height.

2. Thermal expansion: motor heat causes cyclic expansion and contraction.

3. Vibration: the rotor’s centrifugal forces transmit pulses through mounts and screws.

Where two molded parts meet, stress concentrates at corners, screw holes, and snap-fits.
If radii are too sharp or walls too thin, microscopic fractures begin after only a few hundred cycles.
In Energy-Saving Efficient Powerful Vacuum Cleaners, the motor compartment runs hotter, amplifying thermal fatigue around those joints.

🧪 2. The Chemistry of Failure: Material Fatigue and Aging

Most vacuum housings use ABS, polypropylene, or polycarbonate blends.
Each has different responses to heat and humidity:

Repeated vibration forms micro-cracks along polymer chains.
Once a crack starts, oxygen and moisture attack the exposed surface, accelerating embrittlement.
That’s why cracks seem to “grow overnight.”
They have been forming invisibly for months.

🧰 3. Design Choices That Invite Cracks

🔩 a. Sharp Internal Corners

A 90-degree inside corner concentrates up to ten times more stress than a rounded 3 mm radius.
Simple fillets dramatically reduce local strain.

🧱 b. Uneven Wall Thickness

Thick-to-thin transitions cool at different rates during injection molding, leaving residual tension.
When screws are tightened, these zones fracture first.

⚙️ c. Over-Tightened Fasteners

Factories often use pneumatic drivers without torque control.
The first assembly is fine; the tenth strip-out creates a permanent crack line.

🌡️ d. Mismatched Materials

Combining soft elastomer seals with stiff ABS without flexible joints creates differential expansion.
As the motor heats, the hard plastic pulls apart around the softer insert.

💥 e. Impact Points without Reinforcement

Corner edges and wheel mounts should include ribs or honeycomb grids.
Without them, a single drop can split the shell of even a Portable Quiet Vacuum Cleaner.

💡 4. Engineering Fixes that Extend Life

1. Add fillets and ribs near high-load zones.
   Ribs distribute stress while maintaining light weight.

2. Use structural adhesives or ultrasonic welding instead of excessive screws.
   Fewer holes mean fewer fracture origins.

3. Introduce living hinges—thin, flexible links that absorb repeated motion without cracking.

4. Design with finite-element analysis (FEA).
   Modern CAD tools simulate stress distribution, predicting failure before molds are cut.

5. Select glass-fiber-reinforced polymers for large bodies in Wet Dry Vacuum Cleaners or industrial models.
   Though heavier, they resist deformation and fatigue far better than standard ABS.

🧪 5. Quality Control and Testing

Reliability doesn’t end at design—it must be verified on the line.
Professional OEMs in vacuum cleaner distribution and vacuums procurement now use three essential tests:

• Drop Test: from 1 m onto hardwood at different angles—no cracks allowed.

• Thermal Cycling: –10 °C ↔ 60 °C for 24 hours × 10 cycles, then inspect for micro-fissures.

• Vibration Test: simulate 200 hours of operation to ensure fasteners remain tight.

Recording crack propagation under microscope verifies whether stress originates from material choice or process error.

🌬️ 6. Airflow and Structural Integrity

Housing design isn’t only mechanical; it affects suction.
When a crack appears in the main air path, negative pressure escapes, reducing performance by up to 15 %.
A Large-Capacity Wet Dry Vacuum Cleaner with a hairline leak may feel weaker even though the motor is fine.
Sealing gaskets and consistent molding pressure protect both structure and airflow efficiency.

🔋 7. Cordless Models: Light Weight vs Strength

For Cordless Vacuum Cleaners, reducing mass is critical, but thinning walls too far invites failure.
Lightweight designs now use carbon-reinforced nylon or micro-cell foamed polymers that maintain rigidity with less density.
Rib patterns inside the shell replace unnecessary bulk, keeping durability without adding grams.
When sourcing cordless models, always compare not just battery specs but structural stiffness ratios under compression.

🧱 8. Repair or Replace?

Once cracks appear, repair is rarely permanent.
Solvent welding or epoxy fills can restore appearance but not mechanical strength.
Heat-affected zones continue to propagate micro-fractures underneath.
For commercial clients or heavy-duty models, replacement of the full housing is the only safe solution.
Long term, prevention through better material and design saves far more than any patchwork fix.

🌍 9. Sustainability and Recyclability

Durability and environmental responsibility are converging.
Designers now develop modular housing components that can be replaced individually, reducing waste.
Recyclable high-impact ABS blends let parts be reground without severe property loss.
The most sustainable vacuum isn’t just made of recycled plastic—it’s one that never cracks early.

✨ Conclusion

Small cracks are never small for long.
They compromise suction, invite noise, and signal stress imbalances deep inside the product.
A truly Durable Vacuum Cleaner resists these forces through balanced geometry, robust materials, and strict quality control.

For importers, distributors, and engineers, demanding mechanical data—not just marketing specs—turns short-term purchases into long-term value.

“Reliability hides in the details you can’t see—until they break.”
