“A jammed brush isn’t user error — it’s an engineering conversation that never happened.”

Vacuum brushes are the heart of floor-cleaning performance. They lift hair, dust, and debris that suction alone can’t remove. But in most homes and workshops, they are also the first component to fail. Strands of hair wrap around rollers, dust clogs bearings, and fibers melt into the brush base. Eventually, suction drops, the motor strains, and the vacuum’s lifespan shortens.

This problem is not inevitable. It’s a symptom of poor mechanical balance, airflow misalignment, and cheap materials. To build a vacuum that stays powerful and easy to maintain, designers, buyers, and distributors must understand why brushes jam—and what real innovation looks like.

⚙️ 1. Understanding How Vacuum Brushes Work

A vacuum brush roller performs two functions at once: it agitates the floor surface and channels debris toward the suction port.
High-performing models, such as High Suction Vacuum Cleaners or Multi-Functional Durable Vacuum Cleaners, depend on precise mechanical timing between the roller’s spin speed and the airflow velocity beneath it.

The roller consists of:

• A rotating cylinder, usually made of ABS or aluminum.

• Bristles or rubber blades, designed for different surfaces (carpet, tile, hardwood).

• Bearings at each end, enabling smooth rotation.

• Drive belt or motor coupling, connecting the roller to the main suction motor.

When designed correctly, the brush head generates a venturi effect: it loosens dirt with mechanical action and immediately transfers it to the suction path.
When designed poorly, it traps hair, strains the motor, and overheats the belt system.

🧩 2. Why Hair and Fibers Tangle So Easily

Hair tangling isn’t random—it’s driven by physics and geometry.

🧠 a. Axle and Bristle Geometry

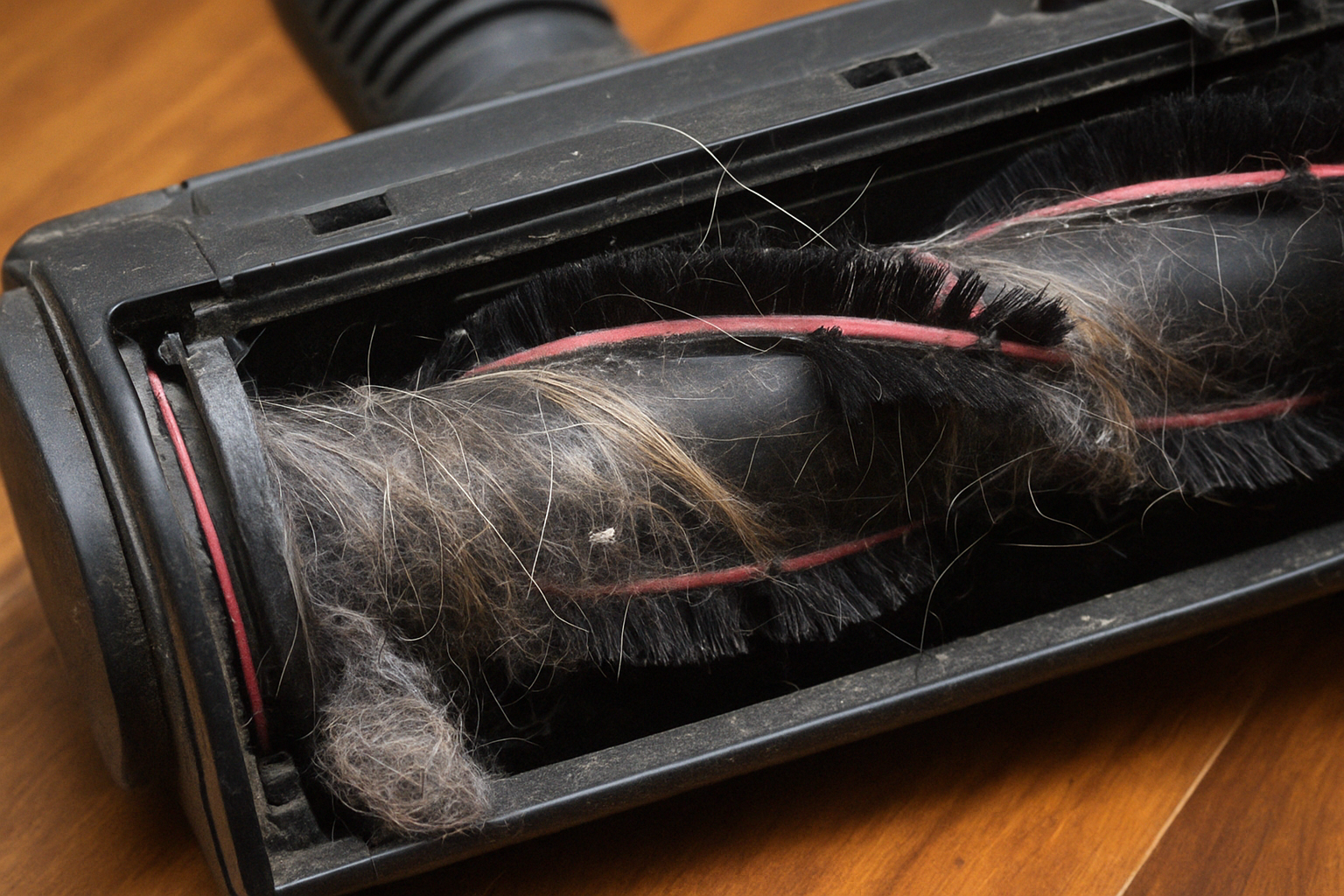

Hair follows airflow until it reaches the roller ends, where it wraps around exposed shafts or uneven edges.
If the brush lacks tapered ends or anti-wrap channels, fibers accumulate at the bearings, forming a dense ring that locks rotation.

⚙️ b. Static Electricity

As the brush spins at high RPM, friction between plastic and fibers generates static charge.
Charged bristles attract fine dust and hair, turning the roller into a magnet for debris.

🌪️ c. Surface Compatibility

A brush designed for carpeted floors has stiff bristles that catch long fibers, while hard-floor brushes require soft or silicone paddles.
Using the wrong tool on the wrong surface multiplies tangling risks.

🔩 d. Cheap Bearings and Shafts

Low-quality vacuum cleaner distribution chains often cut costs by using unsealed bearings or thin shafts.
Once hair enters the bearing gap, it acts like a rope, tightening with every rotation until the motor stalls.

🔧 3. Design Innovations that Prevent Jamming

Next-generation vacuums are addressing these issues through intelligent brush engineering.

🔄 a. Self-Cleaning Brush Rollers

Found in advanced Self-Cleaning Vacuum Cleaners, these systems use internal combs or retractable blades that slice tangled hair as the roller spins.
Some use a short reverse-rotation cycle after each cleaning session, ejecting fibers before they harden.

💨 b. Optimized Airflow Channels

Designers now simulate airflow in CAD environments, adjusting vent geometry so that suction lifts hair away from the roller instead of forcing it around it.
Proper alignment ensures Energy-Saving Efficient Powerful Vacuum Cleaners maintain performance without increasing noise.

🧱 c. Anti-Tangle Materials

Silicone paddles and smooth thermoplastic elastomers resist static buildup and simplify cleaning.
Carbon-fiber or soft rubber brushes also reduce friction, making Cordless Vacuum Cleaners more efficient on multiple surfaces.

🪶 d. Modular Brush Assemblies

Removable brush rollers, sealed end caps, and magnetic bearings allow users to clean or replace parts quickly.
For Li-ion Cordless Handheld Vacuum Cleaners, this modularity keeps units lightweight while extending service life.

🧰 4. Maintenance Habits That Protect Brushes

Even perfect design needs cooperation from users.
Most failures trace back to neglected cleaning routines:

• Remove the roller weekly. Clear hair and thread before buildup reaches the bearing.

• Check belt tension. A loose belt slips; an overtight one burns.

• Wipe bearings and end caps. Dust acts like sandpaper, grinding metal and plastic alike.

• Use the right brush type. Hard bristles for carpets, soft paddles for hardwood or tile.

• Store properly. Never rest a vacuum on the brush; it deforms bristles over time.

Regular maintenance transforms a fragile brush into a durable, high-suction system that stays efficient for years.

🧪 5. Engineering Tests that Separate Good from Cheap

Professional testing validates what marketing can’t promise.
When sourcing brushes from OEM factories or verifying production quality, request these results:

• Fiber-wrap test: Continuous operation for 30 minutes using synthetic hair to evaluate resistance to tangling.

• Torque test: Measures rotational load after debris accumulation.

• Abrasion test: Simulates 10,000 cycles over carpet to assess wear.

• Cleaning efficiency test: Determines pickup rate at multiple power levels for both hair and dust.

These tests reveal whether a Fast Lightweight Vacuum Cleaner will stay efficient after months of real-world abuse.

🌍 6. The Future of Brush Design

Innovation is pushing vacuum engineering toward smarter, cleaner, and more modular systems:

• Smart sensors detect brush blockage and auto-reverse the roller.

• Interchangeable brush modules allow quick swapping between carpet and hard-floor modes.

• Hydrophobic coatings reduce sticky residue from wet cleaning.

• Integrated LED visualization helps users identify hair buildup before it jams.

Such features are no longer luxuries—they are expectations in modern 4 in 1 Cordless Smart Wet & Dry Vacuum Cleaners and Portable Quiet Vacuum Cleaners.

✨ Conclusion

A vacuum’s reliability depends on how smoothly its brush performs.
Hair jams and belt failures aren’t random—they reveal where airflow, geometry, or materials fell short.
When sourcing or designing modern vacuums, focus on brush systems that clean themselves, move air efficiently, and can be serviced without tools.

“A clean brush is a clean design—precision at the point of contact.”

For engineers, importers, and distributors, understanding brush mechanics is the key to reducing returns and improving long-term customer satisfaction.
